Operation instructions:
After the model is printed, please clean and blow-dry the model before putting it into the curing machine.
If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.
The recommended ambient temperature is 0-40 degrees, and the ambient humidity is 20%-50%.
To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time.
Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
Technical Specifications
ELEGOO Mercury X WASH Machine

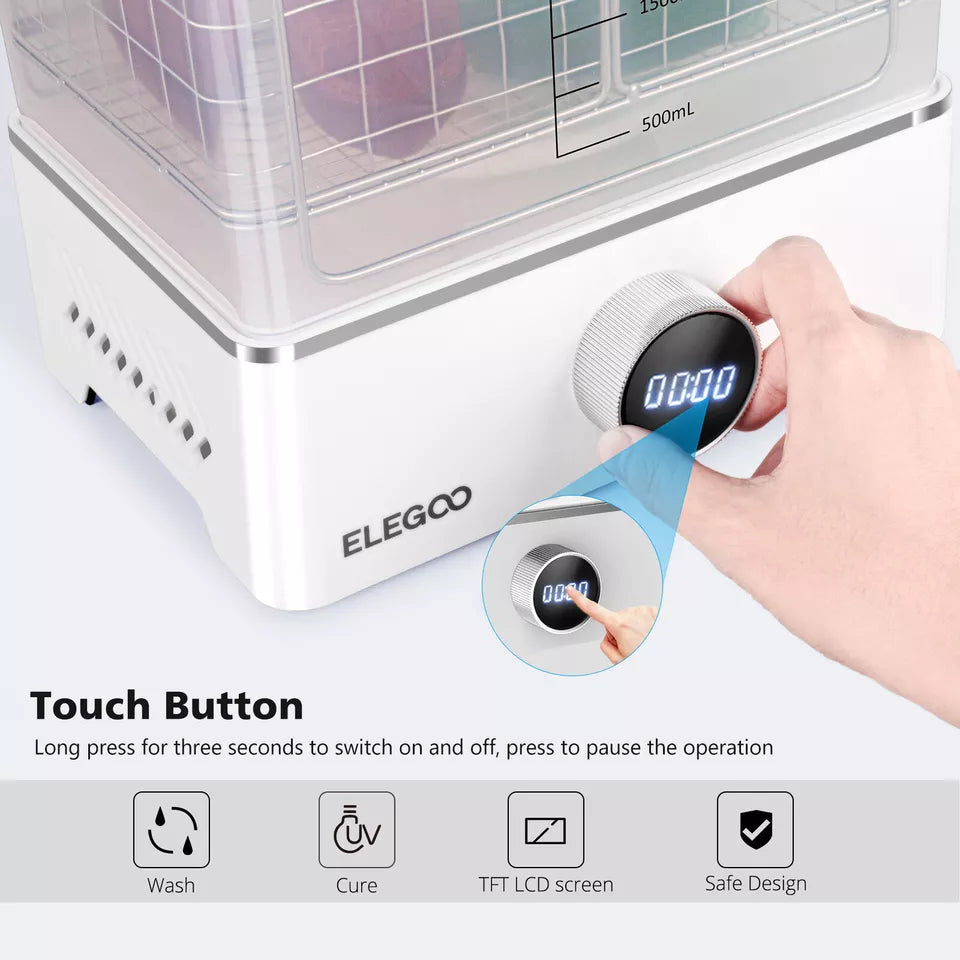

- Control Method: Knob + Button
- Rated Power: 12W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins

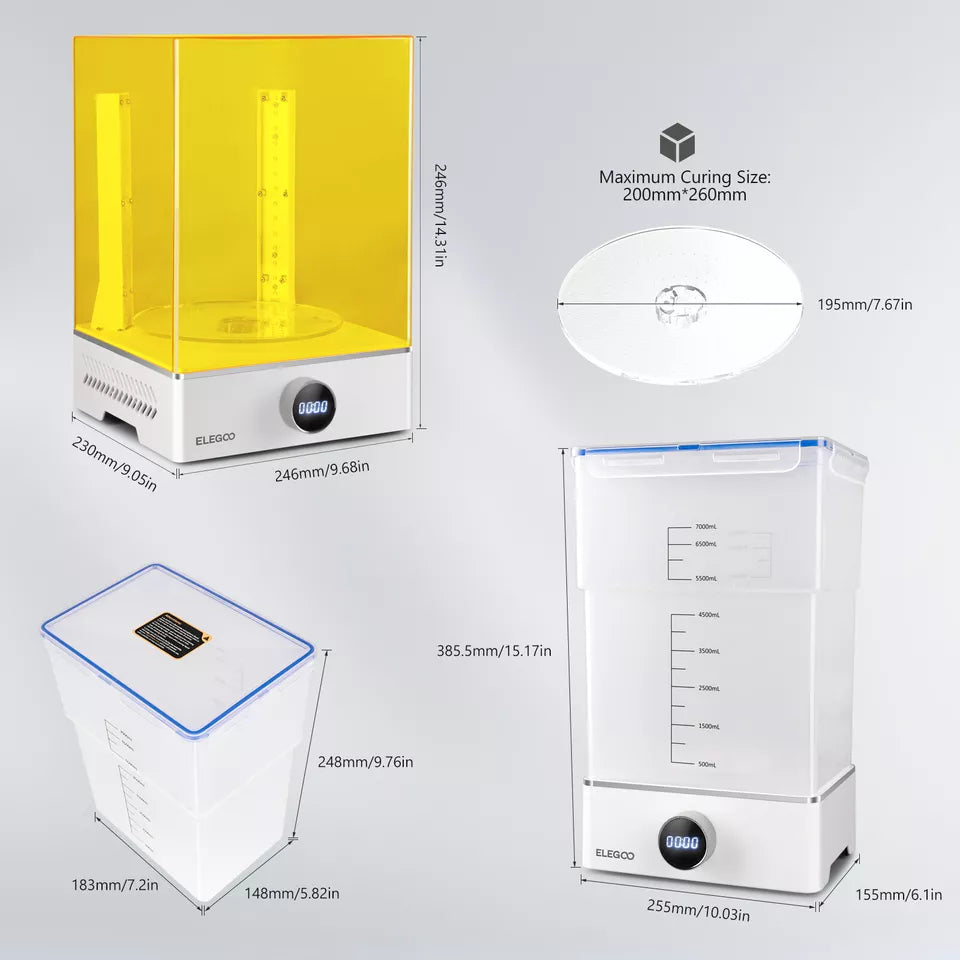

- Machine Size: 255mm*155mm*385.5mm
- Maximum Wash Volume:
- (with platform)180mm*121mm*153mm
- (without platform)201mm*124mm*255mm
- Machine Net Weight: 2.27kg
ELEGOO Mercury X CURE Machine
- Control Method: Knob + Button
- Rated Power: 36W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 246mm*230mm*363.5mm
- Maximum Curing Size: 200mm*260mm
- Machine Net Weight: 2.4kg
